VoCore2 - Linux SBC with WiFi
|
VoCore2 - Linux SBC with WiFi is an open source SBC useful to develop applications o many types, including those for the Internet of Things. |
|
|
VoCore2 - Linux SBC with WiFi is an open source SBC useful to develop applications o many types, including those for the Internet of Things. |

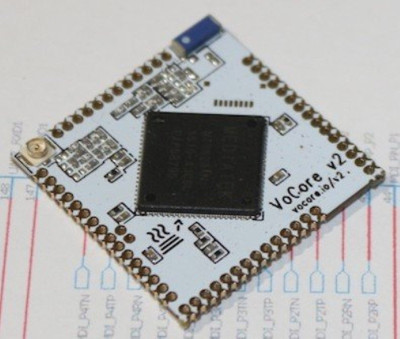

VoCore2 is a tiny single-board computer. Use it for all types of projects where tiny size, inexpensive cost and built-in WiFi are important. The VoCore2 is open hardware which runs Linux and has WiFi, USB, UART, 20+ GPIOs and more. One inch square!
The VoCore2 can be used as a super tiny WiFi router! VoCore2 is a new revision of the original VoCore v1.0, making it faster and more stable without increasing the size!
KEY FEATURES: One-inch square; Built-in WiFi, 802.11n, 2T2R, speed up to 300Mbps; Built-in Antenna, U.FL slot; CPU: MT7628AN, 580MHz, MIPS 24K; Memory: 128MB DDR2 @ 166MHz; Storage: 16MB NOR on board, supports up to 2TB SDXC cards;
Ethernet: 1 port / 5 ports, up to 100Mbps; USB 2.0 port; PCIe 1.1 supported; UART x3 (UART2 for debug console); GPIO Pins: >= 40 (pinmux); PWM x4; Runs Linux - Preloaded!; Dimensions: 25.6 x 25.6 x 3.0 mm; Power input: 3.6V ~ 6.0V; Power consumption: 74mA WiFi standby, 230mA WiFi full speed, 5V input
