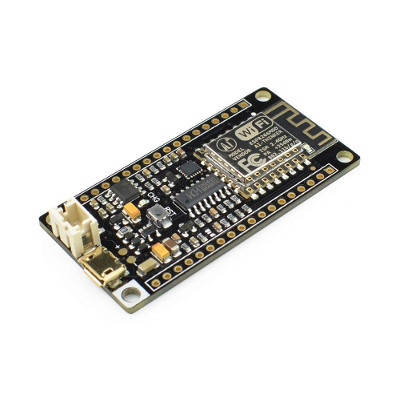

DFRobot FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi)
|
DFRobot FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi) is a board suitable to develop applications of many types, including those for the Internet of Things. |
|
|
DFRobot FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi) is a board suitable to develop applications of many types, including those for the Internet of Things. |
FireBeetle Board-ESP8266 is a wifi IoT developing board, support low power consumption and compatible with RTOS SDK in Linux, Arduino IDE and Micropython programming
Compatible with FireBeetle series and Arduino programing; Built-in 32-bit Tensilica L106 MCU and 10-bit ADC
Support RTOS SDK in Linux, Arduino IDE and Micropython
Support IEEE802.11 b/g/n WiFi (2.4 GHz~2.5 GHz); Support TCP / IP; Support Lithium Battery (The Maximum charge current: 500mA)
Support Low Power Consumption; Support OTA Updating; Support STA/AP/STA+AP
DFRobot FireBeetle is a series of low-power-consumption development hardware designed for Internet of Things (IoT). Firebeetle ESP8266 is a development board integrated with IoT WiFi, TCP/IP, 32-bit MCU, 10-bit ADC and multiple interfaces such as HSPI, UART, PWM, I2C and I2S. In DTIM10, the full power consumption to maintain WiFi connection reached to 1.2mW. Equipped with 16MB outer SPI flash memory, ESP8266 is available for programs and firmware storage.
Compatible with Arduino programming enables Firebeetle ESP8266 to lower the barrier of programming. Operator can implement Arduino programming codes directly onto ESP8266 to reduce the difficulty of operating and increase the stability of board.
Specification:
